APPLICATIONS. SLAB AND FLOORS.

UNLINKING SCREED FILLER TO THE WALL

SOLUTION DESCRIPTION

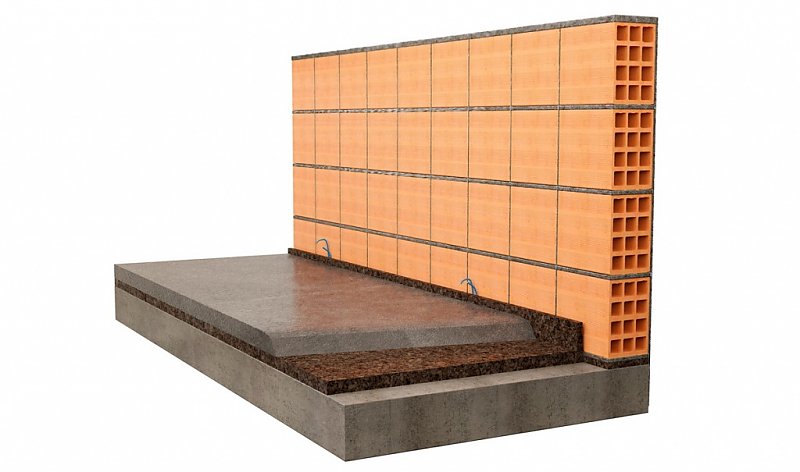

Unlinking screed filler to the wall with Expanded Insulation Corkboard acting simultaneously as insulation against percussion noises and reducing vibration.

TECHNICAL FEATURES

Density: +/- 110 kg/m3
Flexural strength: ≥ 130KPa
Compression resistance at 10%: ≥ 100 KPa
Recommended pressure: 0.25 kg / cm2
Limit of elasticity: 1x104 kg/m2
Thermal conductivity: λ = 0.039 W / m ° C
Excellent soundproofing
wall support

ENVIRONMENTAL FEATURES

- 100% natural and additive-free industrial process
- Durability of 50 to 60 years without loss of characteristics
- Totally recyclable
- Sink CO2 (CARBON NEGATIVE)
- Low embodied energy
- No emission of harmful compounds for indoor air quality

PRODUCT DIMENSIONS

Standard: 1000x500x 10mm
Other widths: Upon Request

RECOMMENDATIONS FOR APPLICATION

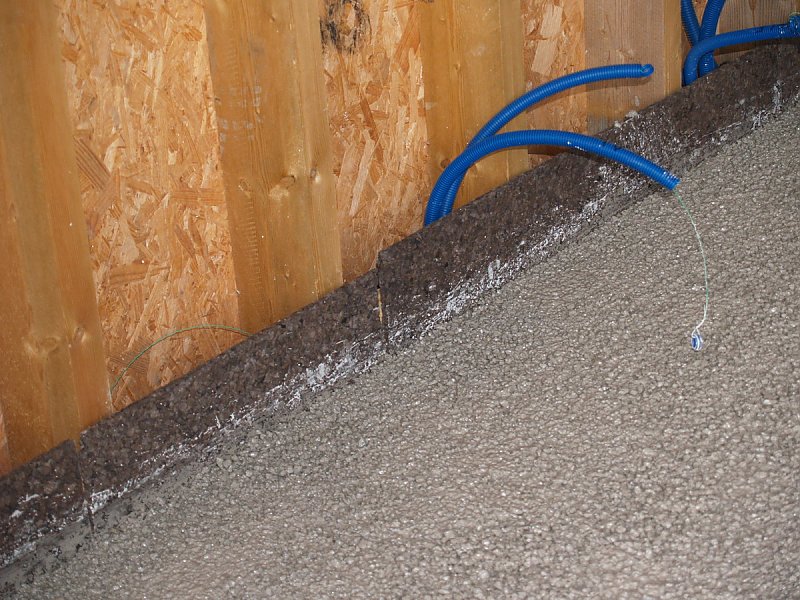

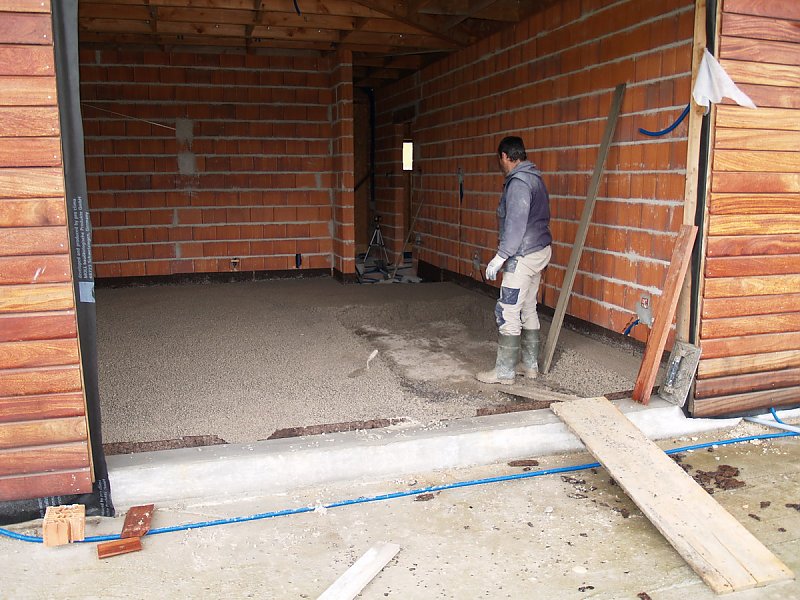

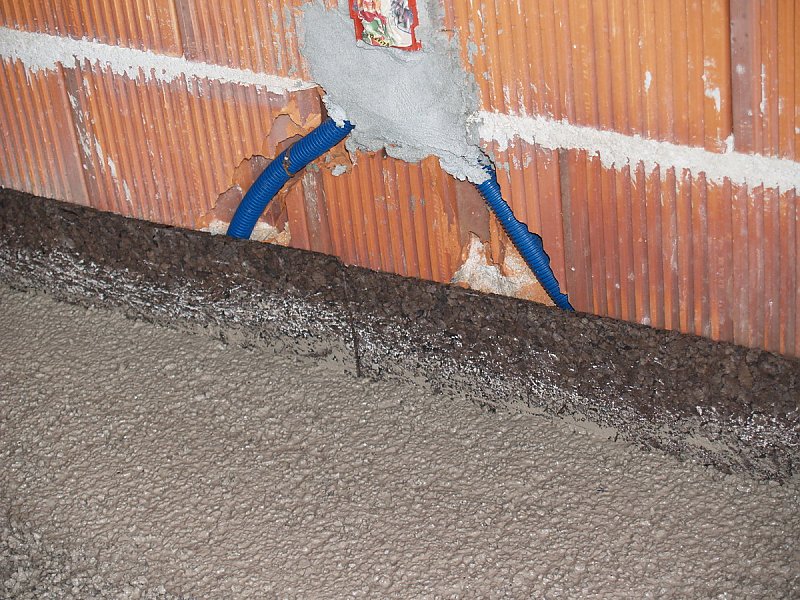

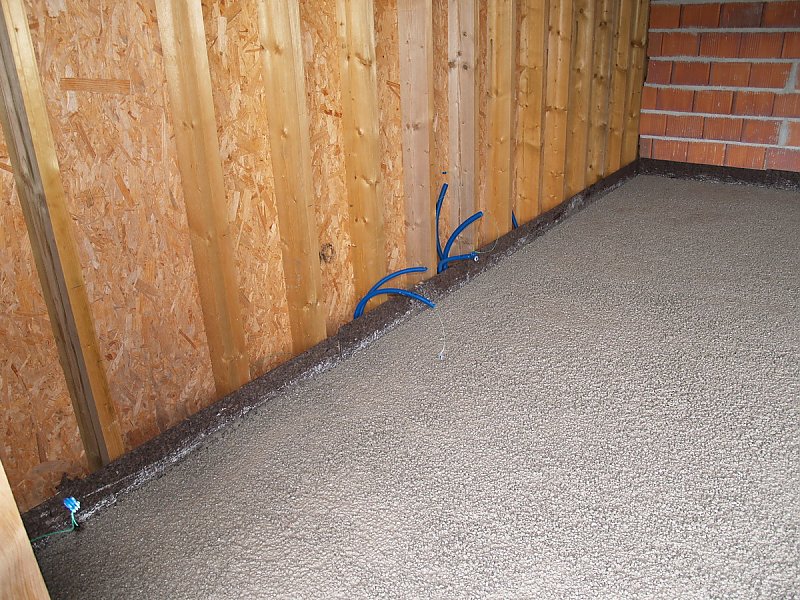

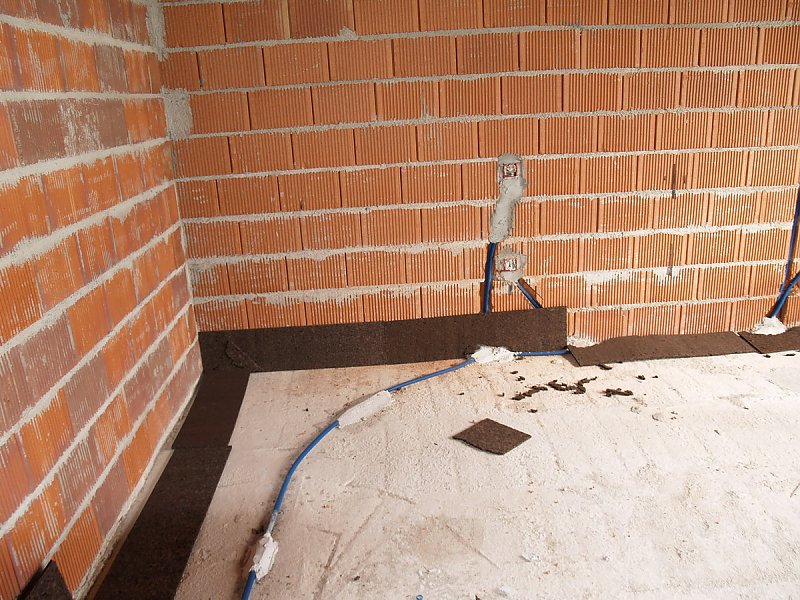

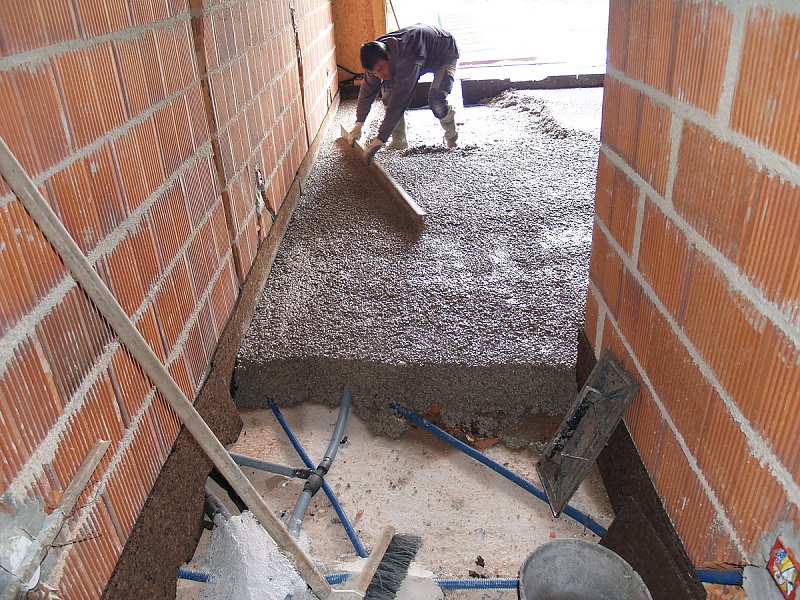

Apply the strips of Expanded Insulation Corkboard along the bottom of the wall to later fill with screed.
