APPLICATIONS. INTERNAL PARTITIONS.

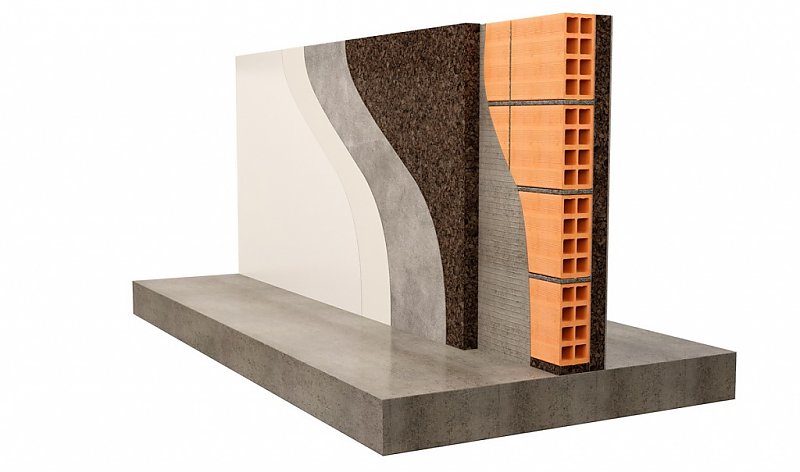

INTERNAL PARTITIONS WITH INSULATION LINED ON BOTH SIDES

SOLUTION DESCRIPTION

Acoustic insulation against airborne sound inside walls with lined Expanded Insulation Corkboard.

TECHNICAL FEATURES

Airborne Sound Insulation Index: Rw = 50 dB
Density: +/- 110 kg/m3
Thermal conductivity: λ = 0,039 W/m°C
Bending Resistance: ≥ 1,8x104 kg/m2
Compression resistance at 10%: ≥ 100 KPa
Excellent dimensional stability
Fire Resistance: Euroclasse E

ENVIRONMENTAL FEATURES

- 100% natural and additive-free industrial process
- Durability of 50 to 60 years without loss of characteristics
- Totally recyclable
- Sink CO2 (CARBON NEGATIVE)
- Low embodied energy
- No emission of harmful compounds for indoor air quality

PRODUCT DIMENSIONS

Standard: 1000x500x [10 to 300mm]
Other sizes: Upon Request

RECOMMENDATIONS FOR APPLICATION

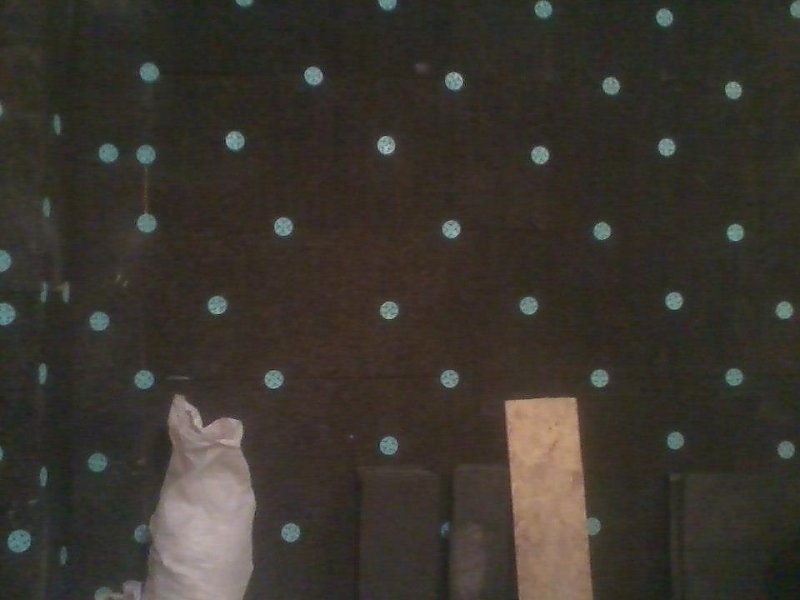

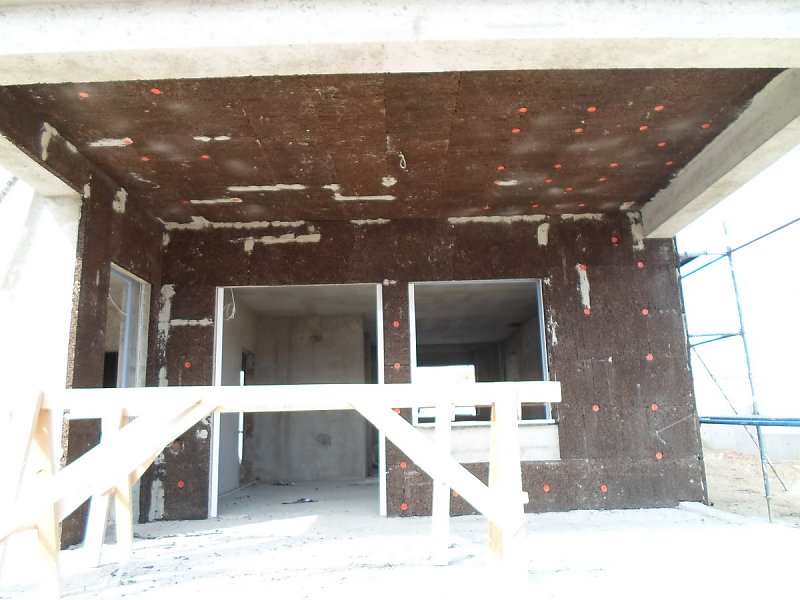

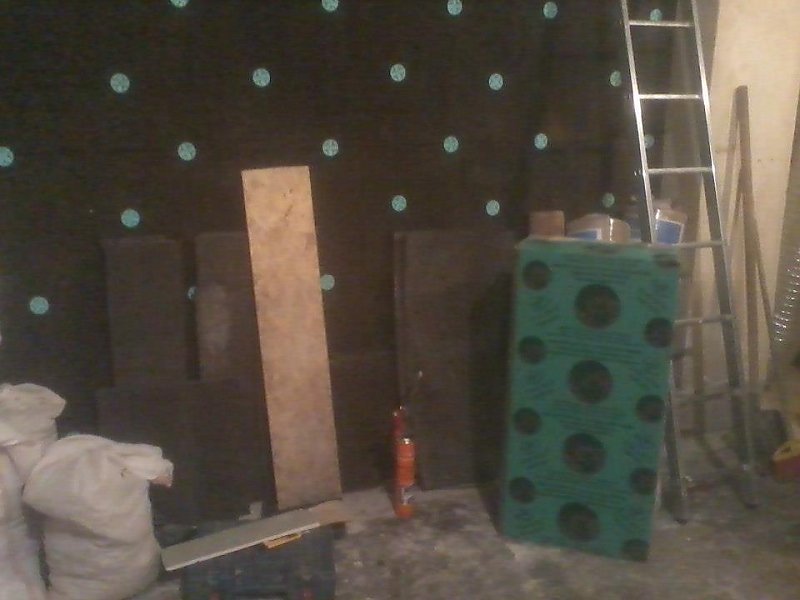

Apply the boards of Expanded Insulation Corkboard over the support and plaster afterwards.
