APPLICATIONS. CEILINGS + OTHER APPLICATIONS.

EXPANSION JOINTS

SOLUTION DESCRIPTION

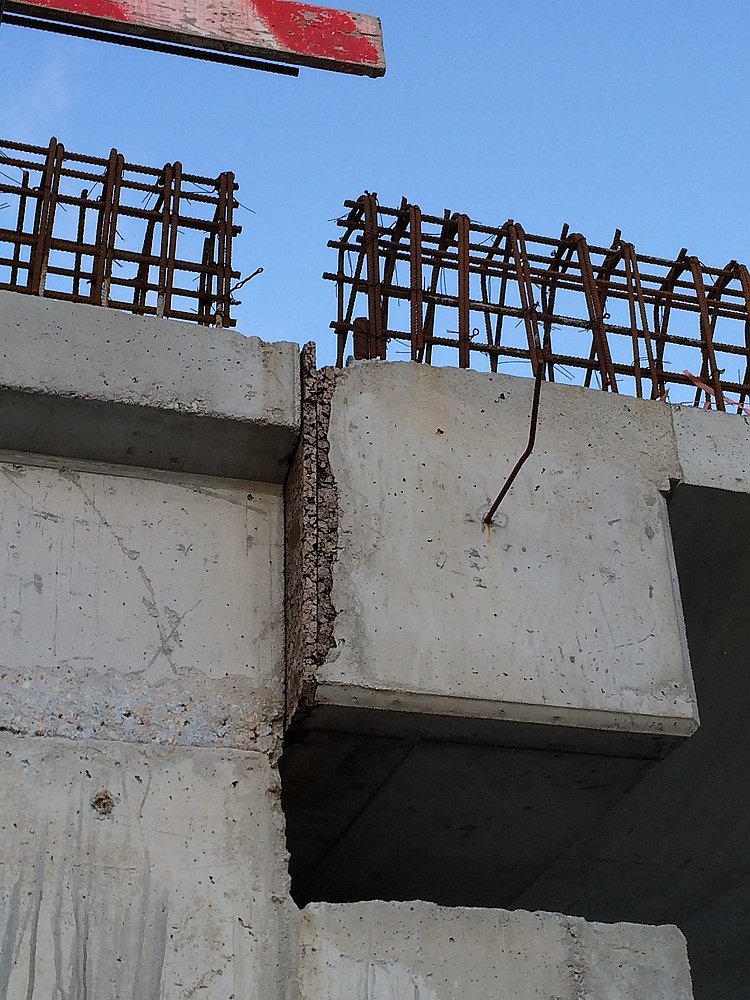

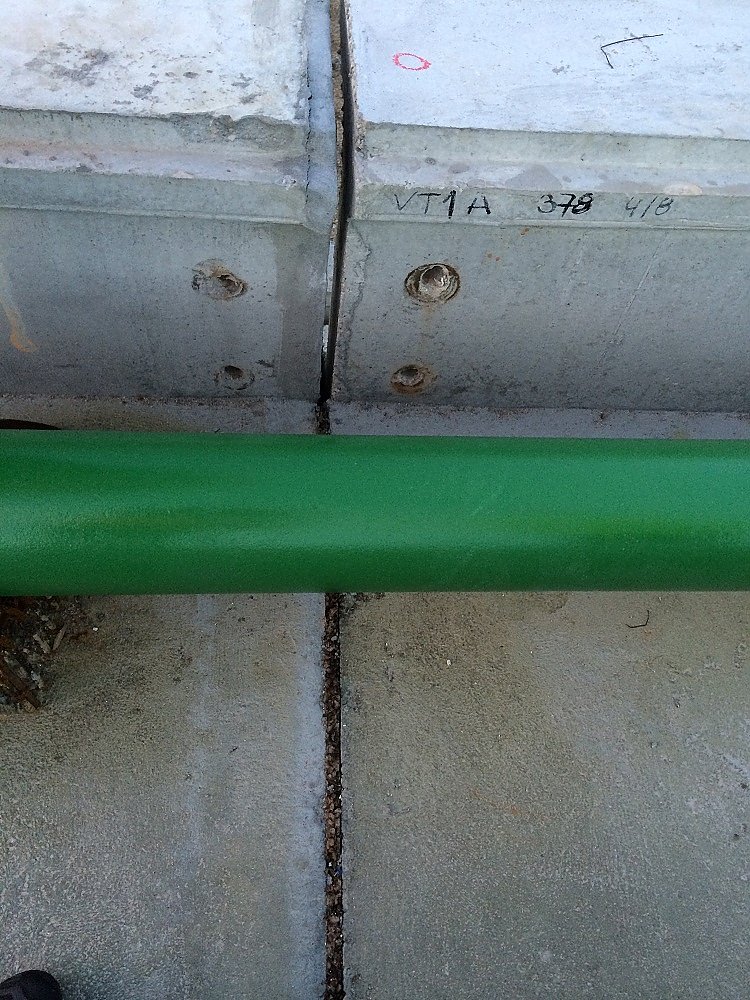

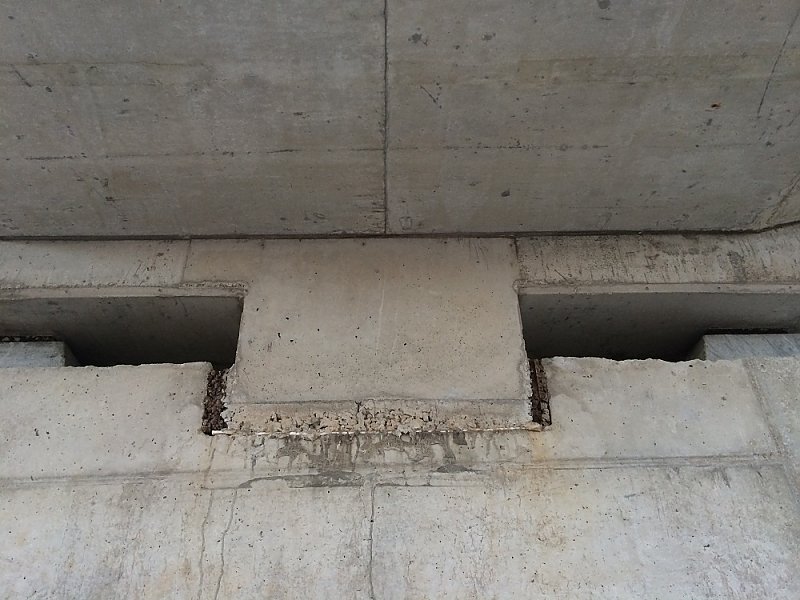

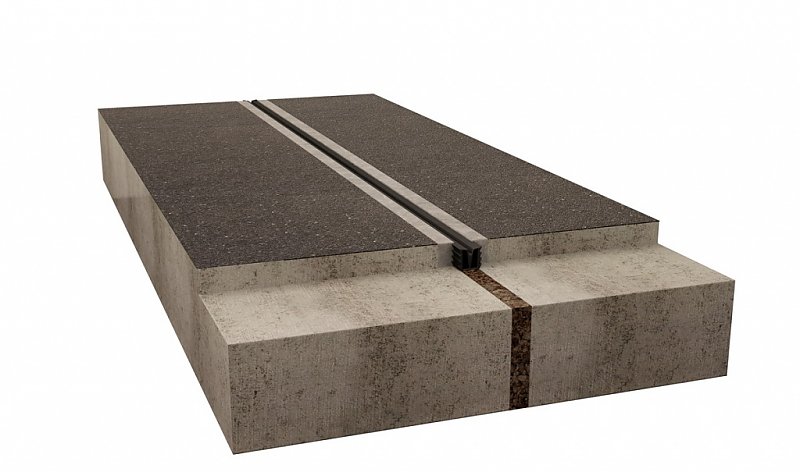

Expansion joints are used in demanding concrete constructions neutralizing expansion and contraction, preventing cracks and burst concrete.

TECHNICAL FEATURES

Meets ASTM D 1752/84 Type II standard.
Compression: 50% of thickness with loads from 0.34 to 10.35MPa.
Recovery: 90% of original thickness at 50% compression.
Extrusion: 6.35 mm (max.) expansion when subjected to 50% compression.
No disintegration in boiling water.
No disintegration in HCl.

ENVIRONMENTAL FEATURES

100% natural and additive-free industrial process.
Excellent durability without requiring maintenance.
Carbon sink.
Low embodied energy.
No emission of compounds harmful to indoor air quality.

PRODUCT LINES

Standard size: 1000 x 500 mm x [12,5 ; 15 ; 20 ; 25 ; 50mm].
Density: 170/190 Kg/m3.

RECOMMENDATIONS FOR APPLICATION

Apply Expanded Insulation Corkboard in expansion joints.
