APPLICATIONS. EXTERNAL WALLS.

ETICS / EIFS

Solution Description

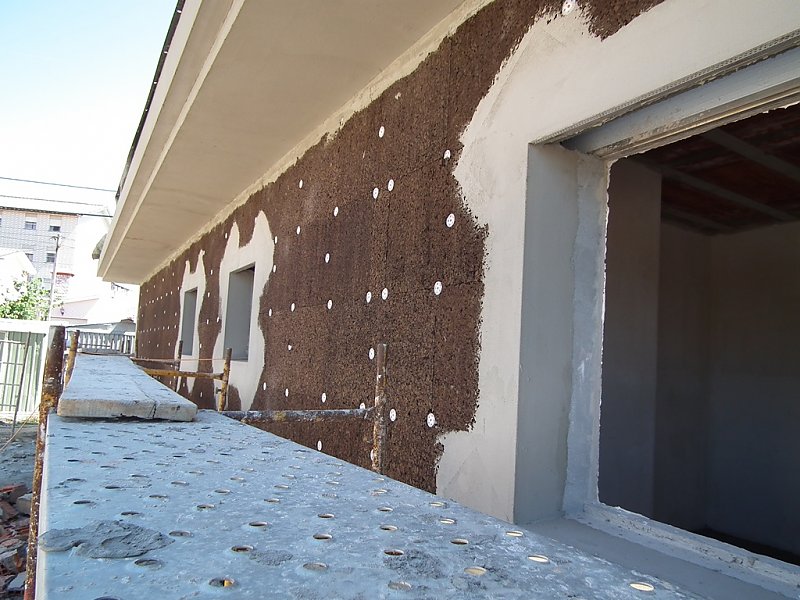

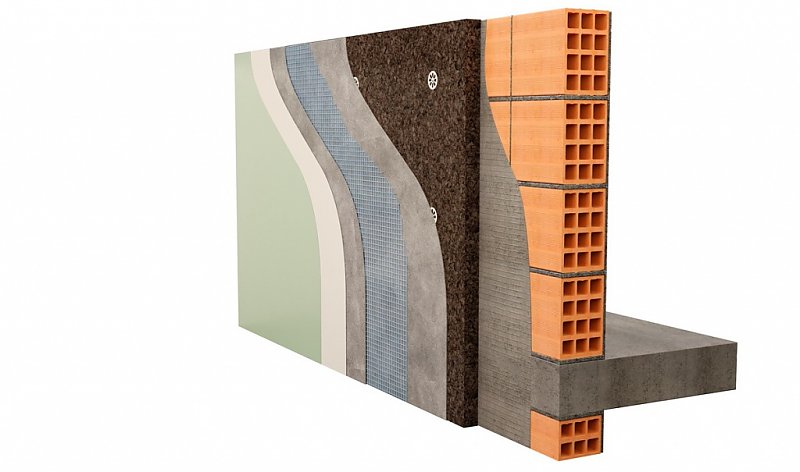

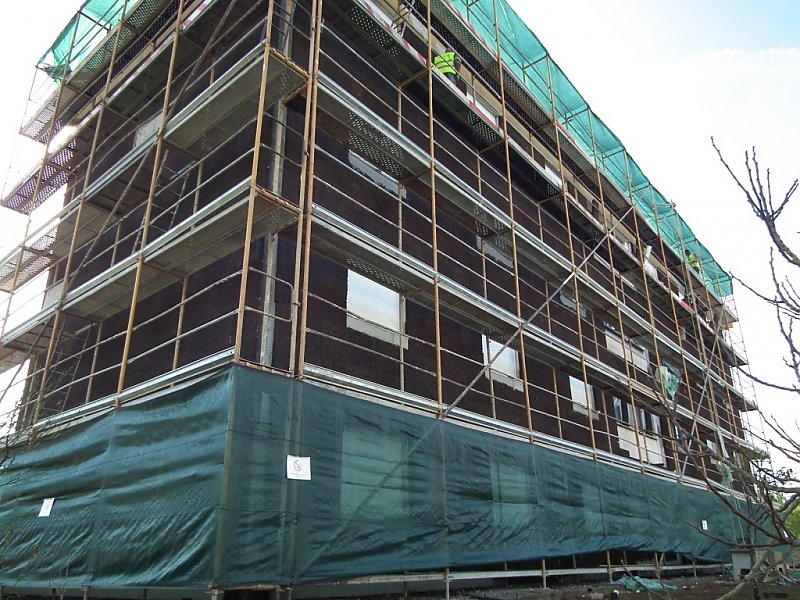

Thermal and acoustic insulation of exterior walls with Expanded Insulation Corkboardby the outside of wall - External Thermal Insulation System

Technical Features

Density: +/- 110 kg/m3
Thermal conductivity: λ = 0,039 W/m°C
Bending Resistance: ≥ 1,8x106 kg/m2
Compression resistance at 10%: ≥ 100 KPa
Perpendicular Face Resistance: declared TR50 (test results 60 KPa)
Optimal behaviour in large temperature range: -180°C a 120°C
Does not absorb water by capillary action
Excellent soundproofing
Fire Resistance: Euroclasse E
System Fire Resistance: Euroclasse B
Moisture factor resistance: MU 20

Environmental Features

- 100% natural and additive-free industrial process

- Durability of 50 to 60 years without loss of characteristics

- Totally recyclable

- Sink CO2 (CARBON NEGATIVE)

- Low embodied energy

- No emission of harmful compounds for indoor air quality

Product Dimensions

Standard: 1000x500x [10 to 300mm]
Other sizes: Upon Request

Recommendations for Application

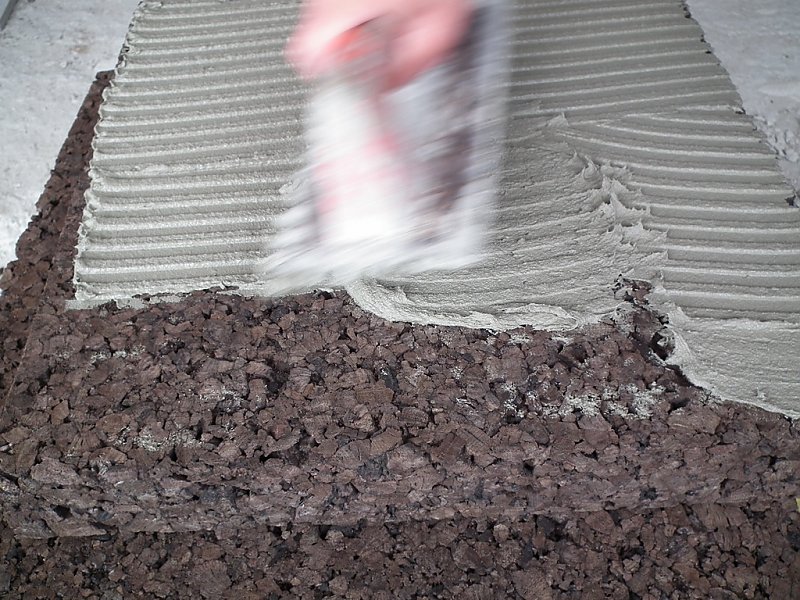

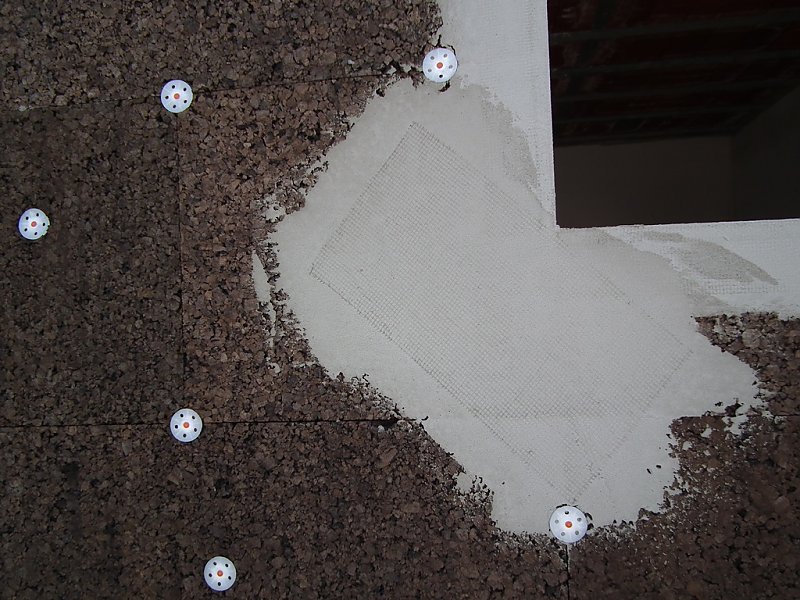

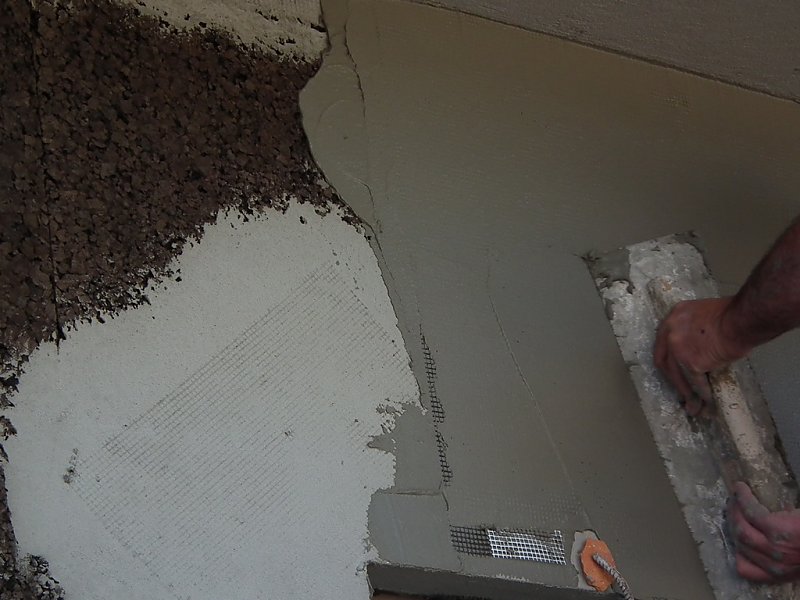

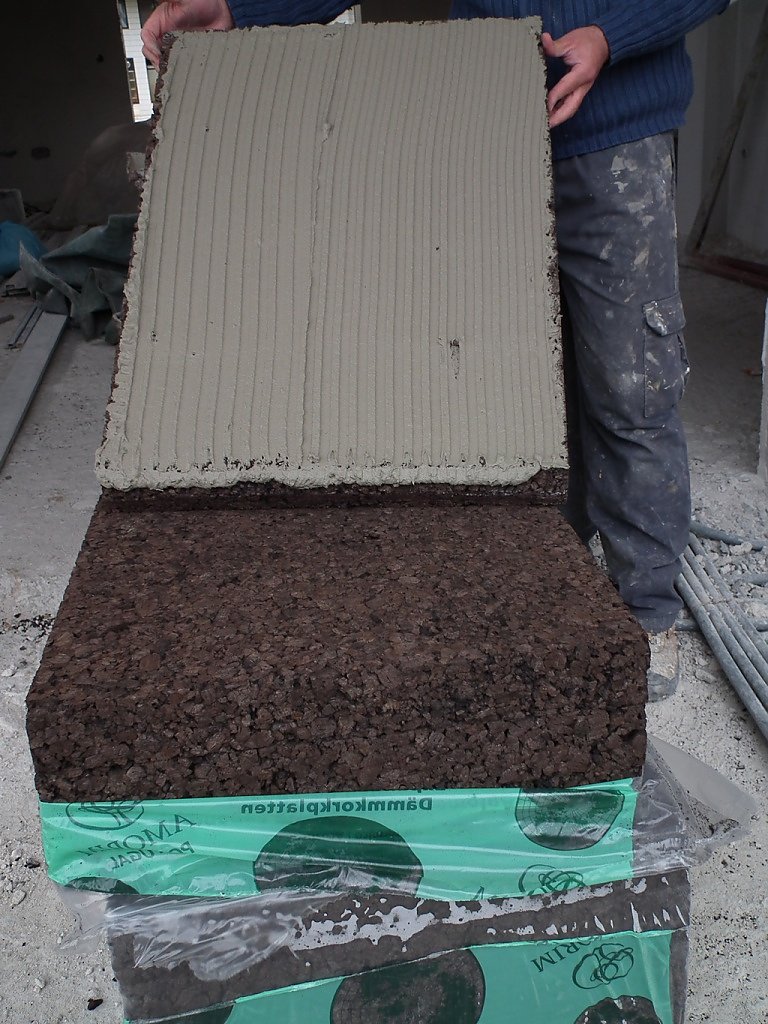

Fix Expanded Insulation Corkboards to the outer surface of the support through the ETICS system. Follow the mortar manufacturer's system instructions.
